16Mo3 / SA 204 Steel Sheets & Plates

Home 16Mo3 / SA 204 Steel Sheets & Plates

16Mo3 / SA 204 Steel Sheets & Plates Manufacturer

ASTM A204 16M03 Steel Sheets, Alloy Steel 16Mo3 Plates, 16M03 Steel Cold Rolled (CR) Sheets, DIN 1.5415 Alloy Steel Hot Rolled (HR) Plates, 16M03 Alloy Steel Coils, ASTM A204 Alloy Steel 16M03 Slatting Coils, ASME SA 204 Alloy Steel 16M03 Sheets Stockists & Exporter

Alloy Steel 16M03 Sheets, Alloy Steel 16M03 Plates & Alloy Steel 16M03 Coils, 16MO3 Alloy Cold Rolled Plates, DIN 1. 5415 Alloy Steel High Quality Plates, 16MO3 Alloy Steel Chequered Plate, Alloy Steel 16mo3 Plates Stockholder

Jaydeep Steels is an acclaimed name engrossed in the field of offering our valuable customers a prevalent quality scope of ASME SA 204 16Mo3 Steel Plates and Sheets. We believe in developing top-notch products while ceaselessly adding the factor of sustainable quality advancement throughout all our endeavors and manufacturing processes. Acting as a predominant 16Mo3 Sheets Suppliers and 16Mo3 Plates Suppliers, it is of utmost importance to use the best quality of raw materials for the production

16Mo3 steel is a kind of pressure vessel steel which is mostly used as a part of industrial usages that demand high-temperature working conditions. Because of its mechanical properties and better crawl resistance, this kind of steel can be put to use even at temperatures like 500°C. In addition to these features, it is also highly weldable. All these advantages, combined, make it a perfect fit for use in the manufacturing of modern boilers and steel pressurized vessels found in the oil, gas and concoction industry.

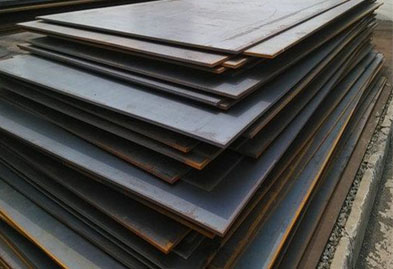

16Mo3 / SA 204 Steel Sheet & Plate

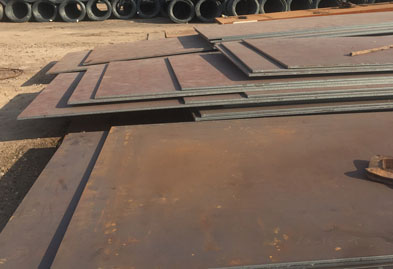

16Mo3 / SA 204 Steel Sheets & Plates

A204 Alloy Steel 16M03 Plates, Alloy Steel 16M03 Perforated Sheets, Alloy Steel 16M03 Sheet Cut to Size, ASTM A204 Alloy Steel 16M03 Alloy Steel Shim Sheets, Alloy Steel 16M03 Hot Rolled (HR) Sheets, Alloy Steel 16M03 Polished Plates Dealer & Wholesaler

ASME SA 204 16Mo3 Hot Rolled Sheets & Plates are available at Jaydeep Steels as per the ASTM standards and mainly comprise molybdenum, manganese, and chromium. These are used for various industrial applications like Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry, and much more. SA 204 16Mo3 Cold Rolled Sheets & Plates offer good cold forming properties, advanced corrosion resistance and thus are applied in pipe transporting hot liquids. All our products are manufactured according to international quality rules and regulations.

16Mo3 / SA 204 Steel Sheets & Plates Specification

Specifications ASTM A204 / ASME SA204
Standard ASTM, ASME, and API
Grade ASTM A204 16MO3
Thickness 4.0mm – 100mm
Specialize Shim Sheet, Perforated Sheet, B. Q. Profile.
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Equivalents Grade of 16MO3 Alloy Steel Sheets & Plates

STANDARD WERKSTOFF NR. UNS JIS EN BS GOST
Alloy Steel 16MO3 2.5415 JIS G3115 EN10028 1503-243B

16MO3 Alloy Steel Sheets & Plates Chemical Composition

Grade C Mn S N Cu Si P Cr Ni Mo
A204 16MO3 0.12- 0.2 0.40- 0.90 0.01 0.012 0.30 0.35 0.025 0.30 0.30 0.25-0.35

Mechanical properties of 16MO3 Alloy Steel Sheets & Plates

Grade 16MO3
16MO3 Tensile Strength(Mpa) Yield Strength (Mpa) Elongation in 100-150 mm(%) Elongation in 16 mm(%) Max Thickness (mm)
440-590 220-275 19 24 250

Types of 16Mo3 / SA 204 Steel Sheets & Plates

AS Polished Plates 16Mo3 Steel Polished Plates
ASME SA204 Polished Plates AS Hot Rolled Plates
16Mo3 Steel Hot Rolled Plates 16Mo3 Steel Hot Rolled Plates
AS Cold Rolled Plates 16Mo3 Steel Cold Rolled Plates
16Mo3 Steel Cold Rolled Plates ASTM A204 Shim Sheet
16Mo3 Steel Shim Sheet 16Mo3 Steel Shim Sheet
AS Chequered Plate 16Mo3 Steel Chequered Plate
ASME SA204 Chequered Plate ASTM A204 Perforated Sheet
16Mo3 Steel Perforated Sheet 16Mo3 Steel Perforated Sheet
