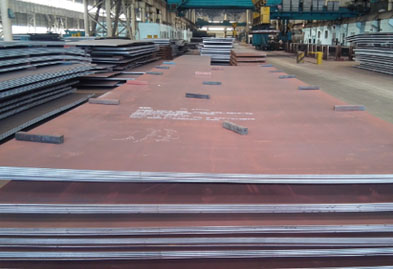

SA 516 Gr. 70 (NACE+HIC) PLATES

ASME SA516 GR. 70 NACE Pressure Vessels Plates, Suppliers of ASTM A516 Grade 70 HIC Carbon Steel Plates, A516 Gr 70 HIC Resistant Steel Plate, NACE HIC Tested A516 Grade 70 Boiler Plate Stockists in India

ASME SA516 GR. 70 HIC Plates, ASME SA516 Grade 70 Plate, A516 Gr 70 HIC Boiler Quality Steel Plate, Hot Rolled Steel ASTM A516 Gr 70 NACE + HIC Plates, ASTM A516 GR. 70 HIC Nace Tested Plates Stockholders in Gujarat

In need of best in class carbon steel plates that conform to both NACE and HIC standards? If yes, then you have come to the right place, Jaydeep Steels is your one-stop source to get high tensile ASTM A516 GR. 70 (NACE + HIC) Plates in India and worldwide. Our offered range of ASTM A516 GR. 70 NACE Plates are very popular and considered best, thus is widely used in boilermakers and fabricators companies.

ASME SA516 GR.70 HIC Plate is a carbon steel plate which has been further tested to demonstrate that it is resistant to hydrogen induced cracking. SA516 GR.70 HIC Boiler Quality Plates is mainly used for pressure vessel and boiler, oil and gas as well as petrochemical industries.

HIC Tested ASTM A516 GR.70 Plates it is significantly affordable than austenitic stainless steel which helps to reduce maintenance and full life costs – as well as improved safety over standard boilerplate. Contact us today to request a free estimate or email us with your complete specification, we are happy to help you!

SA 516 Gr. 70 (NACE+HIC) Plates Specification

Width 1000mm-4500mm
Thickness 5mm-150mm
Length 3000mm-18000mm
Supply Condition As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement
Impact tested  -52° C
Tempering Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications  Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.

SA 516 Gr. 60 (NACE+HIC) Plates Available Sizes in Ready Stock

8 x 2500 x 6000 10 x 2000 x 6000
12 x 2500 x 12000 14 x 2500 x 12000
16 x 2500 x 12000 18 x 2500 x 12000
20 x 2500 x 12000 22 x 2500 x 12000

Equivalent Grades of SA 516 Gr. 70 (NACE+HIC) Plates

British Standard European Norm ASTM/ASME DIN
BS1501-224-490A/B EN10028 P355GH A/SA516 – Grade 70

Chemical Composition of SA 516 Gr. 70 (NACE+HIC) Plates

C Si Mn P S Al Cr Cu Ni Mo Nb Ti V C.E.
0.10/ 0.22 0.6 1/ 1.5 0.010 0.002 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02 0.420 (max)

Mechanical Properties of SA 516 Gr. 70 (NACE+HIC) Plates

Tensile strength MPa (ksi) Yield strength MPa (ksi) Elongation min, % 200 mm (8 in) Elongation min, % 50 mm (2 in)
490-260 (70-90) 265 (38) 17 21

Price List of SA 516 Gr. 70 (NACE+HIC) Plates

Jaydeep Steels is one of the most competitive suppliers of Plates from India. Our prices for SA 516 Gr. 70 (NACE+HIC) Plates are very competitive.

Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Jaydeep Steels maintains a stock of all standard items and can export them at best price for SA 516 Gr. 70 (NACE+HIC) Plates.

SA 516 Gr. 70 (NACE+HIC) Plates - Industries & Applications

Our Sheets & Plates are used in a wide range of applications and various industries. Below are a few of them:

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries

Available Stock of SA 516 Gr. 70 (NACE+HIC) Plates

We maintain huge inventories of all standard sizes and grades.  Please send us your complete requirement and we will send you the availability with the best quote for SA 516 Gr. 70 (NACE+HIC) Plates.

Click to send your requirement.

How to Buy SA 516 Gr. 70 (NACE+HIC) Plates

Jaydeep Steels is a leading stockist, distributor, and supplier of SA 516 Gr. 70 (NACE+HIC) Plates from India. We maintain huge stocks and you can easily buy Welten SA 516 Gr. 70 (NACE+HIC) Plates and other form of 70/70 Plates at one of the best prices. Please use the contact button or click here to send us your requirement to Buy SA 516 Gr. 70 (NACE+HIC) Plates from Jaydeep Steels.

SA 516 Gr. 70 (NACE+HIC) Plates Exporter:

Exporting  SA 516 Gr. 70 (NACE+HIC) Plates to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes  Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy,  Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia,  South Korea, South Africa, Sri Lanka, Syria,  Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
