Female Branch Tee

Home Female Branch Tee

Female Branch Tee

Most Eminent Female Branch Tee Pipe Fitting Manufacturer, Female Branch Tee Instrumentation Pipe Fitting, Female Branch Tee Connector, Female Branch Tee Stockist, Female Branch Tee Adapter, Female Branch Tee Tubing, Female Branch Tee with Ferrule Fittings Supplier

Stainless Steel Female Branch Tee Fittings Stockist, Carbon Steel Female Branch Tee Pipe Fittings, Nickel Alloy Female Branch Tee Fittings, Alloy Steel Female Branch Tee Pipes Fittings Exporter

We at Jaydeep Steels are the most eminent Stockist, Supplier, and Exporter of superior grade high-quality Female Branch Tee Pipe Fittings. Our modern manufacturing unit has modern machinery and we use high-quality raw materials that are supplied by our most trusted vendors. We are expertizing in the manufacturing of all types of instrumentation fittings but Female Branch Tee is our specialty.

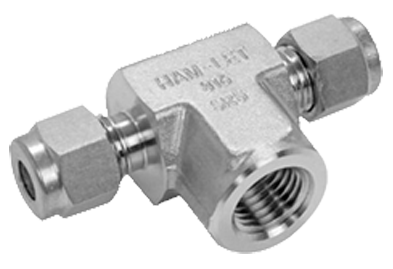

Female Branch Tee is used to connect three pipes/tubes that are right-angled and forms the T section. There is one supply line and the other two are delivery lines have an inner thread which is used to form a connection between pipes/tubes and female branch tee.

SS 304 Female Branch Tee, SS 316 Female Branch Tee Fittings, Copper Nickel Union Fittings, Cu-Ni 90/10 Female Branch Tee Fittings Stockholder

Our these ferrule fittings are designed according to International as well as Indian Standard such as ASTM, AISI, ASME, BS, IS, DIN, JIS, etc. Female Branch Tee Ferrule Fittings possesses excellent corrosion resistance, durable, leak-proof connections, easy to install and cost-effectiveness. These instrumentation fittings are used in various industries including oil & gas refineries, pharmaceuticals, power generation, automobile, aerospace & defense and more.

We offer Female Branch Tee fittings in various grades like 304 Stainless Steel Female Branch Tee, 316 Stainless Steel, Carbon Steel Fittings, Alloy Steel Fittings and more. The provided fittings are available in standard as well as in customized dimensions as per the client’s drawing and specifications. If you are looking to learn more or Buy these fittings Please Contact Us Now, Our experts will help you to choose the best fittings for your applications at a reasonable price.

Technical Specification

Part no. Equivalent Part no. Type 1 Equivalent part no Type 2 NPT FEMALE PIPE SIZE P LX ODT-ØT(INCHES) Ø E BODY HEX F C NUT HEX W D L1
1-FED-1N -100-8-1 1FEL1N 1/16 0.56 1/16 0.05 9/16 0.60 9/16 0.50 0.71
1-FED-2N -100-8-2 1FEL2N 1/8 0.66 1/16 0.05 9/16 0.60 9/16 0.50 0.81
2-FED-2N -200-8-2 2FEL2N 1/8 0.75 1/8 0.09 9/16 0.60 7/16 0.50 0.97
2-FED-4N -200-8-4 2FEL4N 1/4 0.88 1/8 0.09 11/16 0.60 7/16 0.50 1.08
3-FED-2N -300-8-2 3FEL2N 1/8 0.75 3/16 0.12 9/16 0.63 9/16 0.54 1.00
4-FED-2N -400-8-2 4FEL2N 1/8 0.75 1/4 0.19 9/16 0.70 9/16 0.60 1.06
4-FED-4N -400-8-4 4FEL4N 1/4 0.88 1/4 0.19 7/8 0.70 9/16 0.60 1.17
4-FED-6N -400-8-6 4FEL6N 3/8 0.88 1/4 0.19 7/8 0.70 9/16 0.60 1.25
4-FED-8N -400-8-8 4FEL8N 1/2 1.12 1/4 0.19 1-1/16 0.70 9/16 0.60 1.36
5-FED-2N -500-8-2 5FEL2N 1/8 0.75 5/16 0.25 9/16 0.73 5/8 0.64 1.13
5-FED-4N -500-8-4 5FEL4N 1/4 0.88 5/16 0.25 13/16 0.73 5/8 0.64 1.20
6-FED-2N -600-8-2 6FEL2N 1/8 0.75 3/8 0.28 7/8 0.76 11/16 0.66 1.20
6-FED-4N -600-8-4 6FEL4N 1/4 0.88 3/8 0.28 7/8 0.76 11/16 0.66 1.23
6-FED-6N -600-8-6 6FEL6N 3/8 0.88 3/8 0.28 7/8 0.76 11/16 0.66 1.31
6-FED-8N -600-8-8 6FEL8N 1/2 1.12 3/8 0.28 1-1/16 0.76 11/16 0.66 1.42
8-FED-4N -810-8-4 8FEL4N 1/4 0.88 1/2 0.41 13/16 0.86 7/8 0.90 1.42
8-FED-6N -810-8-6 8FEL6N 3/8 0.88 1/2 0.41 13/16 0.86 7/8 0.90 1.42
8-FED-8N -810-8-8 8FEL8N 1/2 1.12 1/2 0.41 1-1/16 0.86 718 0.90 1.53
10-FED-6N -1010-8-6 10FEL6N 3/8 0.88 5/8 0.50 15/16 0.86 1 0.96 1.50
10-FED-8N -1010-8-8 10FEL8N 1/2 1.12 5/8 0.50 1-1/16 0.86 1 0.96 1.57
12-FED-8N -1210-8-8 12FEL8N 1/2 1.12 3/4 0.62 1-1/16 0.86 1-1/8 0.96 1.57
12-FED-12N -1210-8-12 12FEL12N 3/4 1.25 3/4 0.62 1-3/8 0.86 1-1/8 0.96 1.76
14-FED-12N -1410-8-12 14FEL12N 3/4 1.25 7/8 0.72 1-3/8 0000 1-1/4 1.02 1.76
16-FED-12N -1610-8-12 16FEL12N 3/4 1.25 1 0.88 1-3/8 1.04 1-1/2 1.23 1.93
16-FED-16N -1610-8-16 16FEL16N 1 1.50 1 0.88 1-11/16 1.04 1-1/2 1.23 2.11

Material of Construction

Monel Monel 400, Monel K500, Monel R-405
Nickel Nickel 200, Nickel 201
Inconel Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy Incoloy 800, Inconel 800H, 800HT
Hastalloy Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel ASTM SA 182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19

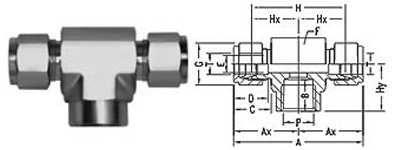

Female Branch Tee Dimension

Imperial tubing
Tube O.D inch NPT thread A C H L W Min bore
inch mm inch mm inch mm inch mm inch inch
1/8 1/8 2.00 50.80 1.00 25.40 0.75 19.05 0.75 19.05 9/16 0.09
3/16 1/8 2.00 50.80 1.00 25.40 0.75 19.05 0.75 19.05 9/16 0.13
1/4 1/8 2.16 54.86 1.08 27.43 0.75 19.05 0.78 19.81 9/16 0.19
1/4 1/4 2.42 61.47 1.21 30.73 0.84 21.34 0.91 23.11 3/4 0.19
5/16 1/8 2.26 57.40 1.13 28.70 0.75 19.05 0.84 21.34 9/16 0.25
3/8 1/4 2.52 64.01 1.26 32.00 0.84 21.34 0.97 24.64 3/4 0.28
1/2 3/8 2.82 71.63 1.41 35.81 0.91 23.11 1.03 26.16 7/8 0.41
1/2 1/2 3.02 76.71 1.51 38.35 1.13 28.70 1.13 28.70 1.1/16 0.41
5/8 1/2 3.02 76.71 1.51 38.35 1.13 28.70 1.13 28.70 1.1/16 0.50
3/4 3/4 3.26 82.80 1.63 41.40 1.25 31.75 1.25 31.75 1.5/16 0.63
7/8 3/4 3.26 82.80 1.63 41.40 1.25 31.75 1.25 31.75 1.5/16 0.75
1 3/4 3.56 90.42 1.78 45.21 1.25 31.75 1.31 33.27 1.5/16 0.88
1 1 4.00 101.60 2.00 50.80 1.50 38.10 1.53 38.86 1.5/8 0.88
Tube O.D inch NPT thread A C H L W Min bore
inch mm mm inch mm inch mm inch inch
3 1/8 2.00 50.80 1.00 25.40 0.75 19.05 0.75 19.05 9/16 0.09
6 1/8 2.16 54.86 1.08 27.43 0.75 19.05 0.78 19.81 9/16 0.19
6 1/4 2.42 61.47 1.21 30.73 0.84 21.34 0.91 23.11 3/4 0.19
8 1/8 2.26 57.40 1.13 28.70 0.75 19.05 0.84 21.34 9/16 0.25
10 1/4 2.52 64.01 1.26 32.00 0.84 21.34 0.97 24.64 3/4 0.28
12 3/8 2.82 71.63 1.41 35.81 0.91 23.11 1.03 26.16 7/8 0.41
12 1/2 3.02 76.71 1.51 38.35 1.13 28.70 1.13 28.70 1.1/16 0.41
20 3/4 3.26 82.80 1.63 41.40 1.25 31.75 1.25 31.75 1.5/16 0.63
25 3/4 3.56 90.42 1.78 45.21 1.25 31.75 1.31 33.27 1.5/16 0.88
25 1 4.00 101.60 2.00 50.80 1.50 38.10 1.53 38.86 1.5/8 0.88

Price List of Female Branch Tee

Jaydeep Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Female Branch Tee are very competitive. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Jaydeep Steels maintains a stock of all standard items and can export them at the best price for Female Branch Tee.

Female Branch Tee - Industries & Applications

Our Female Branch Tee is used in a wide range of applications and various industries. Below are a few of them:

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries

Available Stock of Female Branch Tee

We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Female Branch Tee.

Click to send your requirement.

How to Buy Female Branch Tee

Jaydeep Steels is a leading stockist, distributor, and supplier of Female Branch Tee from India. We maintain huge stocks and you can easily buy Female Branch Tee and other forms of Pipe Fittings at one of the best prices. Please use the contact button or click here to send us your requirement to Buy Female Branch Tee from Jaydeep Steels.
