Union Tee

Home Union Tee

Union Tee

Leading manufacturer of Union Tee Instrumentation Fittings, Union Tee Fittings Stockist, Union Tee Compression Fittings Supplier, Union Tee Pipe Fittings, Union Tee Tube Fittings Exporter

Stainless Steel Union Tee Fittings, SS 304 Union Tee, SS 316 Union Tee Instrumentation Pipe Fittings, Carbon Steel Union Tee Fittings, Copper Nickel Union Tee Fittings Supplier

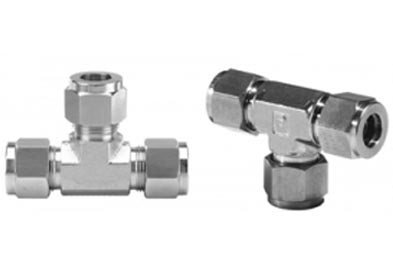

Union Tee is one of the kinds of ferrule fittings that is used to joining three pipes & tubes in piping & tubing systems. Here at, Jaydeep Steels is the most trusted manufacturer, supplier, exporter and stockist of premium quality union tee as Instrumentation Pipe Fittings. These fittings are available in various shapes, sizes, thickness, and other dimensions.

The Union Tee fittings are manufactured using prime quality raw materials that we got from our trusted vendors. We offer the union tee instrumentation fittings in various material grade and alloys such as Stainless Steel Pipes Fittings, Carbon Steel Pipe Fittings, Nickel Alloy Fitting, Alloy Steel Fittings and many more as per client’s drawing and required specifications.

Cu-Ni 90/10 Union Tee Fittings Supplier, Brass Alloy Union Tee, Cu-Ni 70/30 Union Tee Fittings, Copper Nickel Union Tee Exporter

The offered Union Tee fittings are manufactured according to various national and international standards such as ASME, JIS, AISI, IS, BS, DIN, etc. Our Union Tee fittings have high strength, larger working life, excellent surface finish, and cost-effectiveness. These fittings are most popular for its wide industrial uses.

If you are looking for such fittings which having high quality and longer work life then just Call Us with our specific requirements. We assure you that we deliver a high-quality product and its service at your doorstep at affordable prices.

Material of Construction

Monel Monel 400, Monel K500, Monel R-405
Nickel Nickel 200, Nickel 201
Inconel Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy Incoloy 800, Inconel 800H, 800HT
Hastalloy Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel ASTM SA 182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19

Union Tee

Union Tee

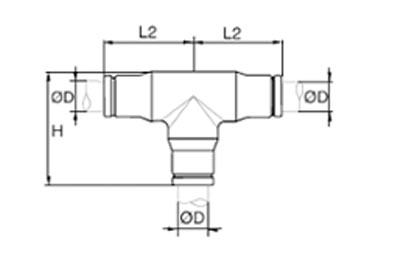

Imperial Tubing

Tube O.D

(inch)

A C L W

(inch)

Min. bore
inch mm inch mm inch mm inch mm
1/16 1.40 35.6 0.70 17.8 0.56 14.2 5/16 0.05 1.3
1/8 1.82 46.2 0.91 23.1 0.66 16.8 5/16 0.09 2.3
3/16 1.88 47.8 0.94 24.9 0.69 17.5 7/16 0.13 3.3
1/4 2.03 51.6 1.02 25.9 0.72 18.3 7/16 0.19 4.8
5/16 2.21 56.1 1.10 27.9 0.81 20.6 9/16 0.25 6.4
3/8 2.27 57.7 1.13 28.7 0.84 21.3 9/16 0.28 7.1
1/2 2.71 68.8 1.35 34.3 0.97 24.6 3/4 0.41 10.4
5/8 2.89 73.4 1.44 36.6 1.06 26.9 7/8 0.50 12.7
3/4 3.09 78.5 1.54 39.1 1.16 29.5 1.1/16 0.63 16.0
7/8 3.33 84.6 1.66 42.2 1.28 32.5 1.5/16 0.75 19.1
1 3.56 90.4 1.78 45.2 1.31 33.3 1.5/16 0.88 22.4
Metric Tubing
Tube O.D

(mm)

A C L W Min. bore

(mm)

mm mm mm inch
3 46.6 23.3 16.7 5/16 2.4
4 48.2 24.1 17.5 5/16 3.0
6 51.6 25.8 18.3 7/16 4.8
8 56.2 28.1 20.6 9/16 6.4
10 66.0 33.0 25.4 3/4 7.9
12 69.4 34.7 24.6 3/4 9.5
16 74.2 37.1 27.0 7/8 12.7
18 79.0 39.5 29.4 1.1/16 15.1
20 85.2 42.6 32.5 1.5/16 15.9
25 91.2 45.6 33.3 1.3/8 22.2

Price List of Union Tee

Jaydeep Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Union Tee are very competitive. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Jaydeep Steels maintains a stock of all standard items and can export them at the best price for Union Tee.

Union Tee - Industries & Applications

Our Union Tee is used in a wide range of applications and various industries. Below are a few of them:

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries

Available Stock of Union Tee

We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for Union Tee.

Click to send your requirement.

How to Buy Union Tee

Jaydeep Steels is a leading stockist, distributor, and supplier of Union Tee from India. We maintain huge stocks and you can easily buy Union Tee and other forms of Pipe Fittings at one of the best prices. Please use the contact button or click here to send us your requirement to Buy Union Tee from Jaydeep Steels.

Union Tee Exporter:

Exporting Union Tee to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countries includes  Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy,  Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia,  South Korea, South Africa, Sri Lanka, Syria,  Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
